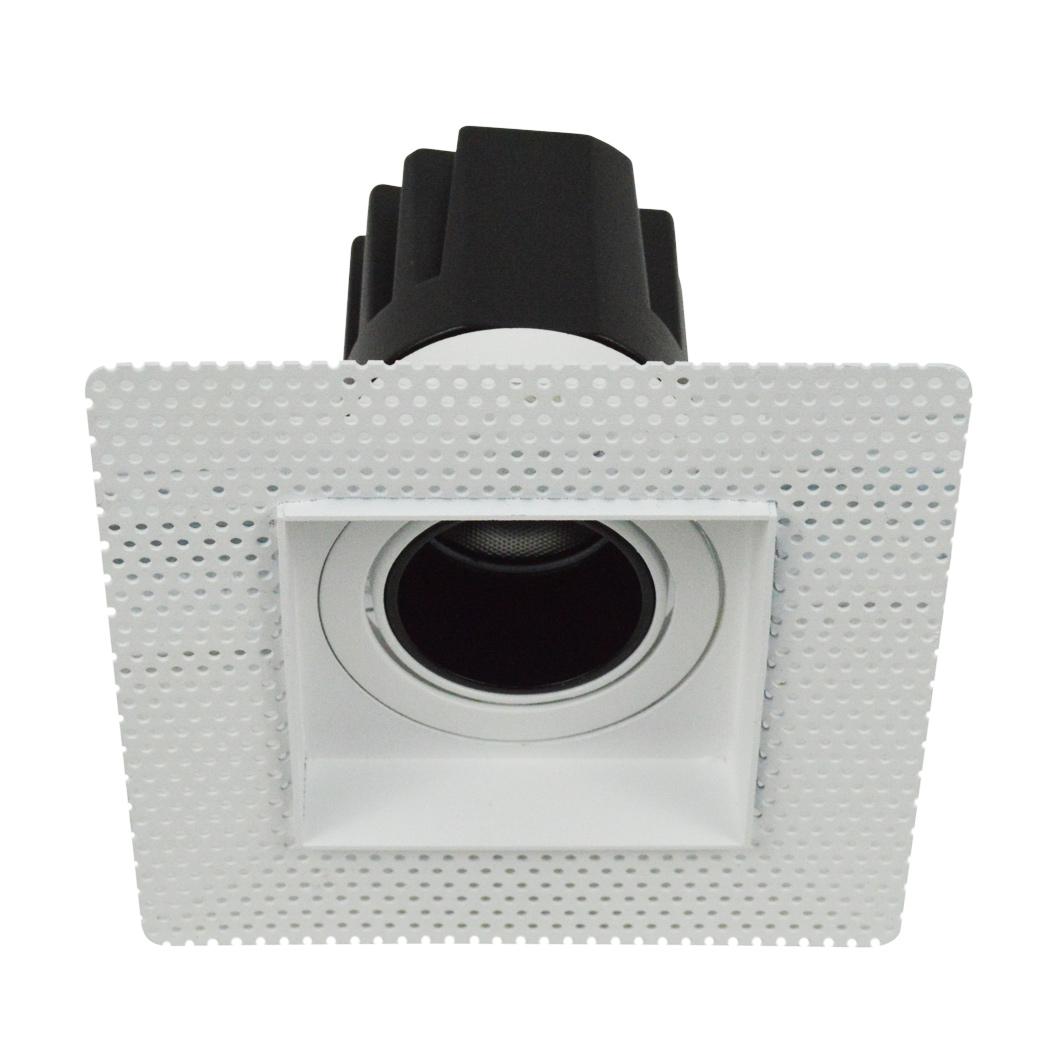

Andes 1-S Square Adjustable Plaster In LED Downlight

Key Features

  1. Adjustable: 24° tilt, 355º rotation
  2. Beam angle in 15°, 24° & 36°
  3. Easy to remove light engine from the square frame, even after it's been fitted
  4. Die-cast aluminium with steel housing - heat sink in forged aluminium

Tech Overview

  • Independently fire rated to 60 minutes
  • Luminus LED chip with 2 step MacAdam
  • TRIAC mains, 0-10V or DALI dimming
  • Compatible with Casambi wireless dimming units

Total Delivered Lumens

BEAM ANGLE   COLOUR TEMP   Lm/W       DELIVERED LUMENS
15° 2700K° 45 585lm
24° 2700K° 56 728lm
36° 2700K° 61 793lm
15° 3000K° 48 624lm
24° 3000K° 60 780lm
36° 3000K° 65 745lm



True Colour CRI 98 / R9 95 - where the whites are whiter and reds are redder. The best colour rendering LED technology on the market, the True Colour range is designed specifically for applications where perfect colour rendering is a must.



Dimensions128mm x 128mm, H.105mm
Cutout80mm x 80mm
IP RatingIP54
Wattage13W
Current350mA
Warranty5 years

Add to My Project

Select the most appropriate options for your needs to find the most suitable solution for your project.

Finish

Baffle

Beam Angle (°)

Colour Temperature (°K)

Driver

Casambi Dimming

Product code:
DLD/ANDE1-S-P-A
